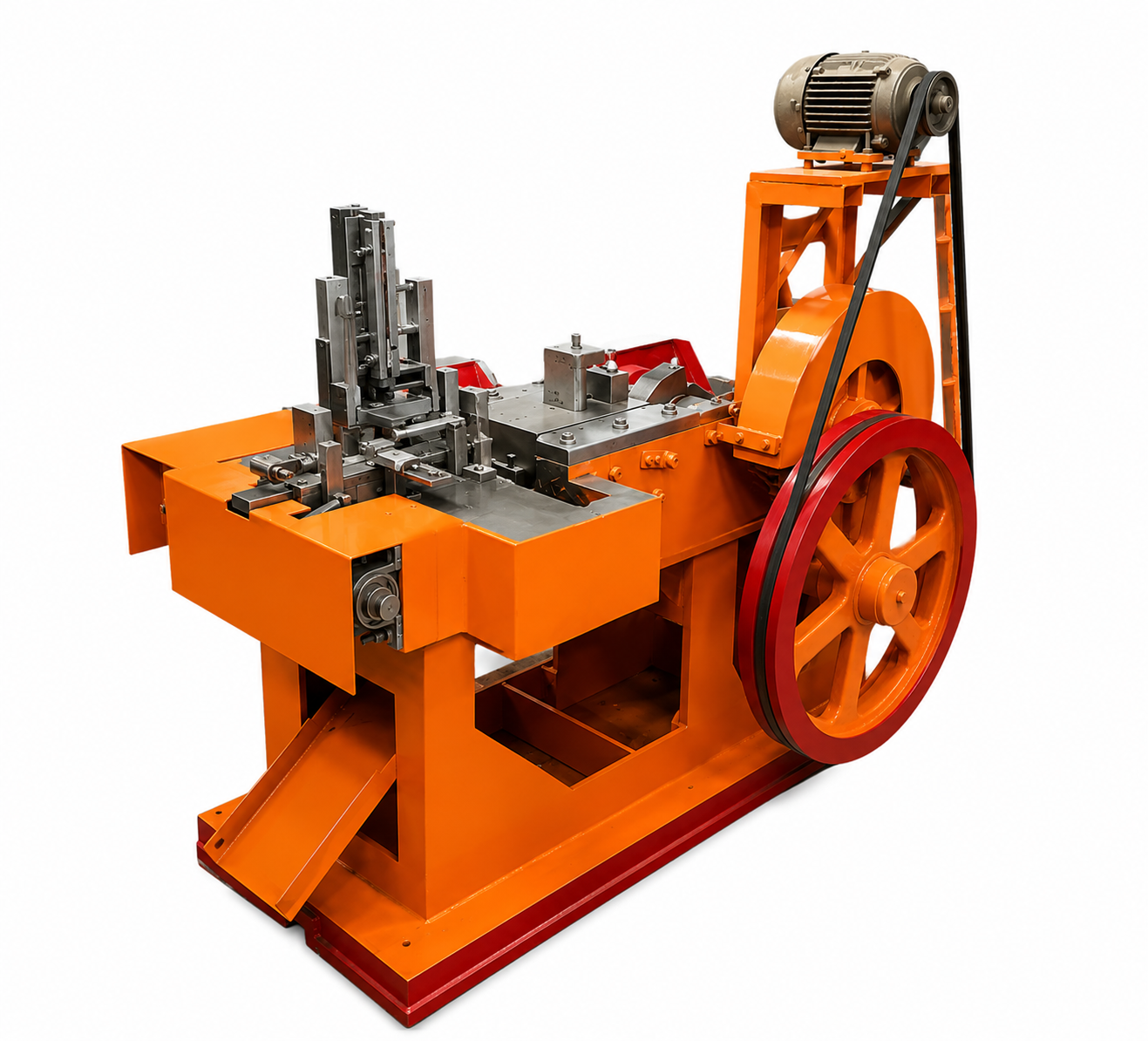

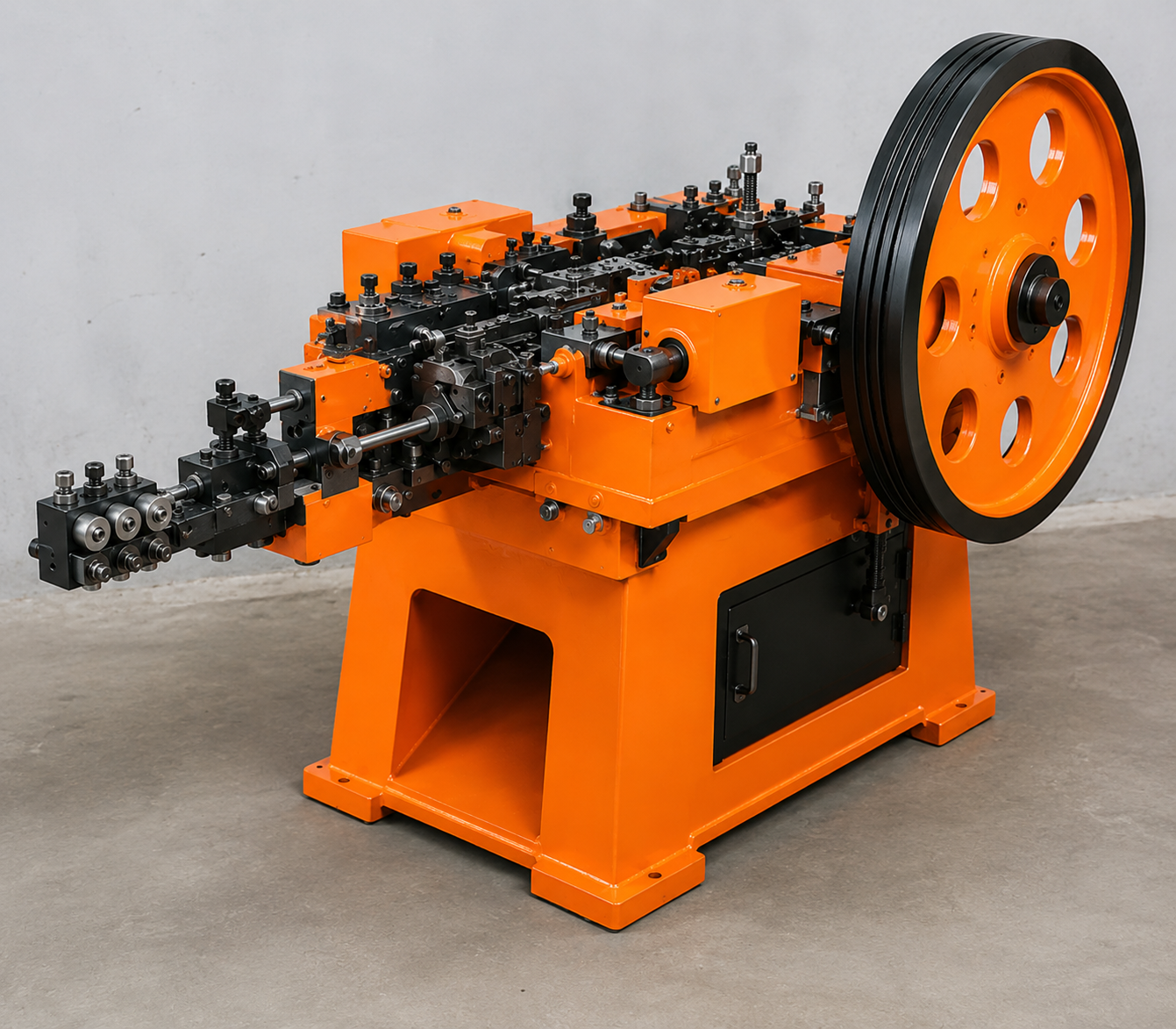

Automatic High-Speed Nail Making Machine
₹275,000.00
Description
Heavy-Duty Automatic High-Speed Nail Making Machine Overview
The Automatic High-Speed Nail Making Machine manufactured by N.S. Engineering Works is engineered specifically for industrial nail manufacturers seeking maximum output, extreme structural durability, and minimal operating maintenance. Built with heavy-duty MS and alloy steel castings at our Mandi Gobindgarh workshop, this machine ensures continuous round-the-clock wire feeding, shank heading, and precision cutting.
Equipped with a dynamically balanced heavy inertia flywheel, hardened steel gripper dies, and precision mechanical drive linkages, the machine delivers a uniform output of 100 kg/hr while operating on a compact 5 kW energy-efficient single phase drive. It accurately processes mild steel (MS) wire and high carbon wire ranging from 1 mm to 4 mm into sharp, uniform wire nails from 1 inch to 4 inches in length.
Complete Wire Nail Making Machine Range & Production Capacity
We manufacture multiple automatic wire nail models tailored to wire diameter, nail length requirements, and hourly output targets:
Key Engineering & Operational Features
Automatic Wire Straightening & Feeding
Continuous roller straightener removes coils and kinks from the incoming wire coil, feeding straight wire into the gripper dies with consistent dimensional tolerance.
Heavy Cast & Fabricated Base Frame
Solid 1000 kg machine weight and reinforced floor-mounted chassis absorb mechanical shocks and prevent harmonic vibrations during continuous production.
Hardened Alloy Steel Tooling
High-grade alloy gripper dies and cutting blades undergo specialized thermal hardening to ensure thousands of operating hours without premature edge dulling.
Balanced Inertia Flywheel
Heavy precision-machined flywheel stores rotational energy to execute smooth heading strokes with minimum electrical power draw (5 kW single phase).
Essential Plant Accessories (Available Ex-Stock)
- Nail Polishing Drum (NPD-200 / 250 Kg): Single barrel tumbling drum complete with 2 HP electric motor for removing nippings and mirror polishing nails — Request Quote
- Nail Polishing Drum (NPD-500 / 500 Kg): Heavy double-barrel high-capacity tumbling drum complete with 5 HP motor — Request Quote
- Cutter & Die Grinding Machine: Specialized 1 HP × 2600 RPM grinder equipped with 4 profile grinding wheels for rapid on-site die sharpening — Request Quote
- Spare Tooling Kits: Hammer punches, gripping dies, and high-speed cutting blades available ex-stock for all NSW models.
12-Month Factory Warranty & Dispatch Terms
Every nail making machine is rigorously dry-tested and inspected with actual wire feed at our Mandi Gobindgarh workshop before shipment. All machines carry a 12-month standard warranty against manufacturing defects from the date of commissioning.
Payment Terms: 50% advance with order confirmation, 30% during machine fabrication, and 10% after successful on-site trial run. Pan-India transport and sea-worthy export crating available.
Additional information
| Nail type | Wire nail |
|---|---|
| Production capacity | 100 kg/hr |
| Automation grade | Semi automatic |
| Nail length range | 1-4 inch |
| Wire dia range | 1-4 mm |
| Power | 5 kW |
| Phase | Single phase |
| Body material | MS, Alloy steel |
| Machine weight | 1000 kg |
