Jaw Crusher Machine (300 × 500 mm)
₹375,000.00
Description
The Jaw Crusher Machine (300 × 500 mm) manufactured by N.S. Engineering Works in Mandi Gobindgarh (Punjab) is a rugged, single-toggle primary crushing system engineered for heavy-duty quarrying, mineral processing, and mining industries. Designed with a generous 300 × 500 mm (12″ × 20″) feed throat and driven by a robust 20 HP electric motor, this heavy-duty primary jaw crusher efficiently reduces large boulder feed up to 300 mm down to uniform aggregate, road base sub-ballast, and secondary crusher feed at a sustained rate of 5 TPH.
Technical Specifications • Jaw Crusher Machine (300 × 500 mm)
| Technical Parameter | Factory Engineering Specification |
|---|---|
| Product Model | NSW-JC-300500 (Primary Single Toggle) |
| Jaw Opening Size (Feed Throat) | 300 × 500 mm (approx. 12″ × 20″) |
| Hourly Crushing Capacity | 5 TPH (Tons Per Hour) continuous primary duty |
| Maximum Feed Size | 300 mm (12 inches) |
| Crushing Stage & Mechanism | Primary Crushing • Single Toggle Mechanism with Pitman Assembly |
| Motor Power Requirement | 20 HP (15 kW), 3-Phase, 415V, 50 Hz Heavy Duty Electric Motor |
| Jaw Plate Material | High Manganese Steel (Mn13Cr2 / Mn18Cr2), reversible design |
| Main Frame Construction | Heavy Fabricated Cast Steel / High-Tensile IS-2062 Grade MS Frame |
| Eccentric Shaft & Bearings | Forged Alloy Steel Shaft (EN-19 / 42CrMo4) with Spherical Roller Bearings |
| Flywheel Assembly | Twin Dynamically Balanced Cast Iron Heavy Flywheels with V-Grooves |
| Jaw Crusher Machine HSN Code | 84742010 (Crushing and Grinding Machines for Stone & Minerals) |
| Country of Origin & Dispatch | Made in India • Factory Dispatch from Mandi Gobindgarh, Punjab |
Direct Factory Price Quotation • Workshop Dispatch
As recognized jaw crusher machine manufacturers in india, N.S. Engineering Works supplies directly to quarry operators, mining contractors, and crushing plant projects. To get the competitive jaw crusher machine price for the 300 × 500 mm model or customized plant setups, reach out directly to our engineering sales desk:
Jaw Crusher Machine Diagram • Engineering Cross-Section & Parts Drawing

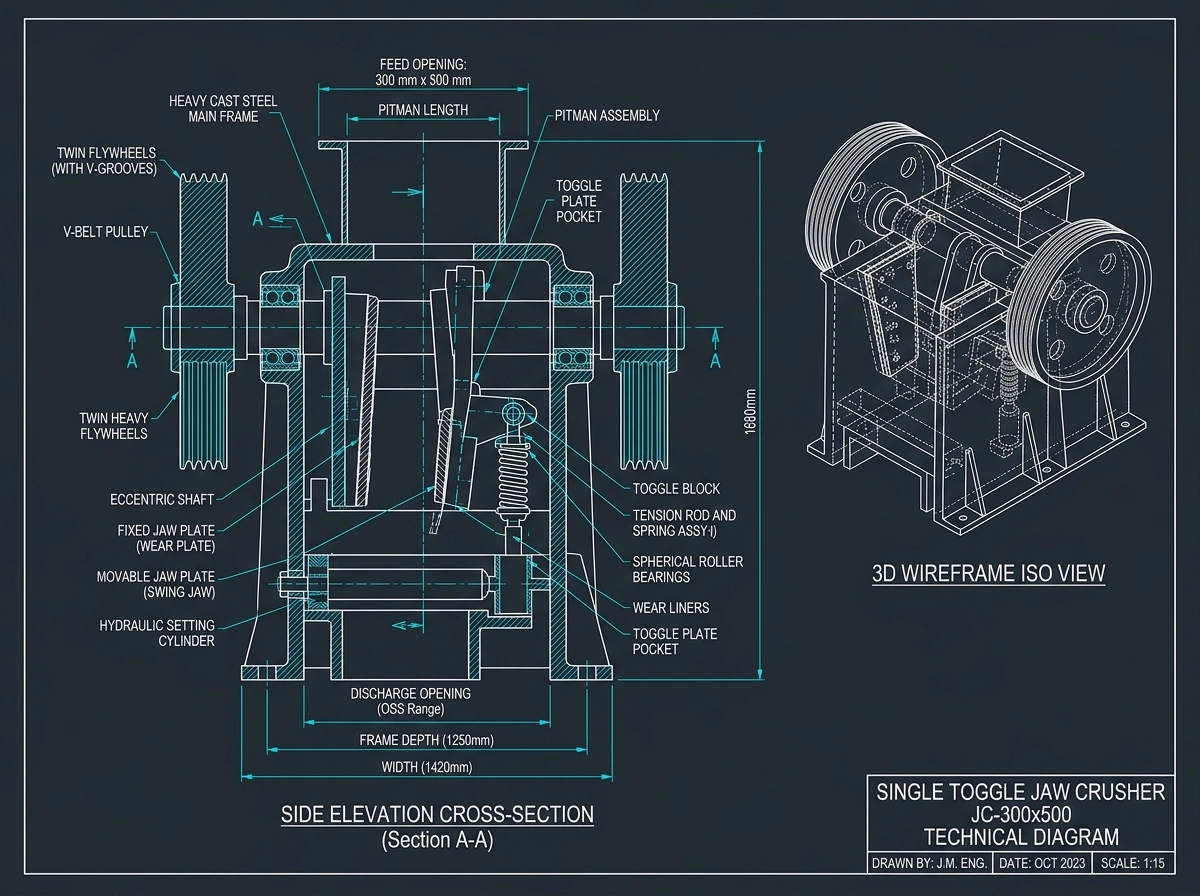

The schematic below illustrates the precision mechanical architecture of the NSW-JC-300500 model. The certified jaw crusher machine diagram highlights key components including the feed opening hopper, eccentric shaft bearing assembly, fixed and swinging jaw dies, toggle plate, and twin dynamic flywheels.
Key Jaw Crusher Machine Parts • Heavy-Duty Mechanical Anatomy
Every component in our 300 × 500 mm unit is built for abrasive stone crushing conditions without mechanical fatigue. Genuine jaw crusher machine parts engineered into this unit include:
- Manganese Steel Jaw Plates: Cast from high-grade Mn13Cr2 or Mn18Cr2 austenitic steel. Corrugated teeth provide aggressive stone gripping, and reversible geometry doubles operational service life before replacement.
- Eccentric Shaft & Pitman: Machined from high-grade alloy forged steel (EN-19 / 42CrMo4) ultrasonic-tested to eliminate internal micro-fractures, transmitting continuous crushing force without deflection.
- Heavy-Duty Spherical Roller Bearings: Double-row self-aligning spherical roller bearings protected by labyrinth grease seals keep stone dust and grit out of critical rotating elements.
- Cast Iron Toggle Plate & Seat: Functions as a precise kinematic pivot as well as a safety shear element that snaps safely if uncrushable tramp metal enters the crushing chamber, safeguarding the main frame.
- Twin Dynamic Flywheels: Symmetrical cast iron flywheels store rotational kinetic energy to smooth out motor peak amperage spikes during crushing impacts, ensuring fuel and electricity efficiency.
- Tension Rod & Helical Return Spring: Heavy-duty coil spring assembly maintains continuous seated contact between the pitman, toggle plate, and rear adjusting wedge block.

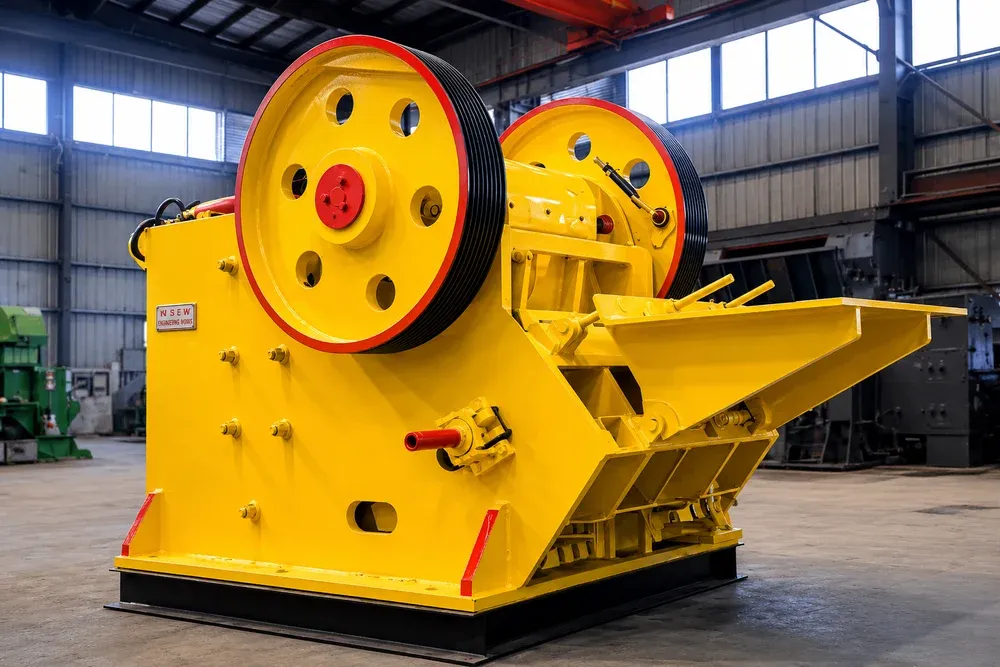

Heavy Fabrication & Workshop Assembly Showcase
Fabricated at our Mandi Gobindgarh production facility with deep-penetration submerged arc welding, ribbed gusset reinforcement, and precision boring for bearing housings.
Jaw Crusher Machine Mining & Quarry Applications
The heavy-duty single toggle design is ideal for versatile aggregate reduction and jaw crusher machine mining installations across India:
- Commercial Quarry Plants: Crushing hard granite, basalt, river boulders, and quartzite into cubical aggregate.
- Limestone & Cement Crushing: Primary sizing of quarried limestone rock before hammer mills or ball mills.
- Mineral & Metal Ore Processing: Primary breaking of iron ore, bauxite, manganese ore, and copper ore prior to magnetic separation.
- Road Construction & Infrastructure: Producing GSB sub-base material and railway track ballast stone.
- Demolition & Concrete Recycling: Sizing reinforced concrete debris, asphalt blocks, and slag lump.
Live Jaw Crusher Machine Video Demonstration
Want to inspect the machine in active stone crushing duty? We provide comprehensive jaw crusher machine video footage of factory no-load running tests, boulder feeding, and aggregate output discharging. You can also schedule an interactive live video inspection directly with our workshop engineers:
Frequently Asked Questions • Jaw Crusher Machine
1. What is the jaw crusher machine price in India for the 300 × 500 mm model?
The jaw crusher machine price in india (and overall jaw crusher machine price) depends on the chosen configuration, motor drive power (20 HP standard), feed chute options, and jaw plate alloy rating (Mn13Cr2 or Mn18Cr2). N.S. Engineering Works provides direct ex-factory rates from Mandi Gobindgarh with zero dealer markup, starting from approximately ₹1,41,000 for standard base setups. WhatsApp our sales engineers at +91 8272861892 for a custom quotation including freight to your site.
2. Why is N.S. Engineering Works recognized among leading jaw crusher machine manufacturers in India?
Among prominent jaw crusher machine manufacturers in india, N.S. Engineering Works combines heavy-gauge steel plate fabrication, ultrasonic-tested alloy eccentric shafts, dynamic flywheel balancing, and genuine manganese wear castings. We provide complete turnkey crushing plant integration, structural layout drawings, and pan-India on-site commissioning.
3. Where can I obtain a CAD jaw crusher machine diagram and foundation layout?
A detailed 2D/3D engineering jaw crusher machine diagram and mechanical cross-section are published directly in the specifications section above. We provide complete foundation engineering drawings, civil bolt footprint layouts, and motor mounting dimensions to all clients upon order confirmation.
4. What essential jaw crusher machine parts are supplied and stocked by N.S. Engineering Works?
We manufacture and maintain ready inventory of all critical jaw crusher machine parts, including fixed jaw plates, swinging jaw dies, side check plates, toggle plates, toggle seats, pitman assemblies, heavy spherical roller bearings, tension springs, and flywheels for immediate nationwide dispatch.
5. How is the 300 × 500 mm model utilized in jaw crusher machine mining installations?
In jaw crusher machine mining projects, this unit acts as the primary crushing stage, receiving run-of-mine blasted ore or quarry rock up to 300 mm and crushing it into manageable sizes suitable for secondary cone crushers, roll crushers, or magnetic drum separators. Its high crushing ratio ensures efficient liberation of mineral values.
6. What is the official jaw crusher machine HSN code and GST rate?
The designated jaw crusher machine HSN code in India is 84742010, covering industrial crushing and grinding machines for stone, mineral ores, and earth substances. GST applicable is 18%, eligible for full Input Tax Credit (ITC) for business entities.
7. How can I watch a live jaw crusher machine video before placing an order?
To view a genuine jaw crusher machine video showing active rock crushing and mechanical testing at our Mandi Gobindgarh facility, simply send a WhatsApp message to +91 8272861892. Our engineers will share high-definition videos showing feed intake, jaw movement, and crushed stone discharge.
