Industrial Ball Grinding Mill Machine (5 TPH)

Description

N.S. Engineering Works is one of the premier ball grinding machine manufacturers in India, engineering high-efficiency industrial ball grinding mill machines for continuous wet and dry grinding across metallurgy, cement production, mining, and chemical processing. This 5 TPH industrial ball mill features a 900 mm diameter by 1200 mm length heavy-duty rotating drum, reinforced with high-manganese steel wave liners and high-torque gear transmission to reduce coarse feed aggregates into uniform fine powder with minimal specific power consumption.

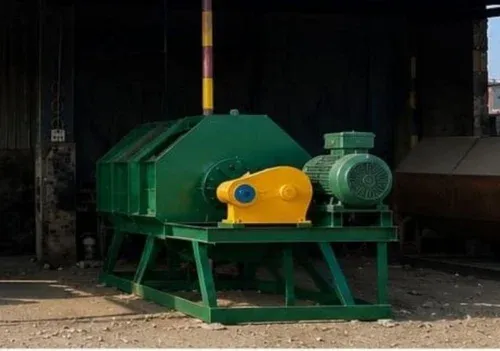

If you are seeking a reliable ball grinding machine for sale with transparent manufacturer-direct ball grinding machine price, our Mandi Gobindgarh facility fabricates every ball grinder machine to withstand severe operational abrasion. From small pilot ball milling machine lab units to high-capacity 5 TPH and 35 TPH production mills, each unit is mounted on a heavy structural steel skid frame requiring leveling-only installation for swift commissioning.

Technical Specifications – Industrial Ball Grinding Mill Machine (5 TPH)

Ball Milling Machine Diagram & Technical Working Schematic

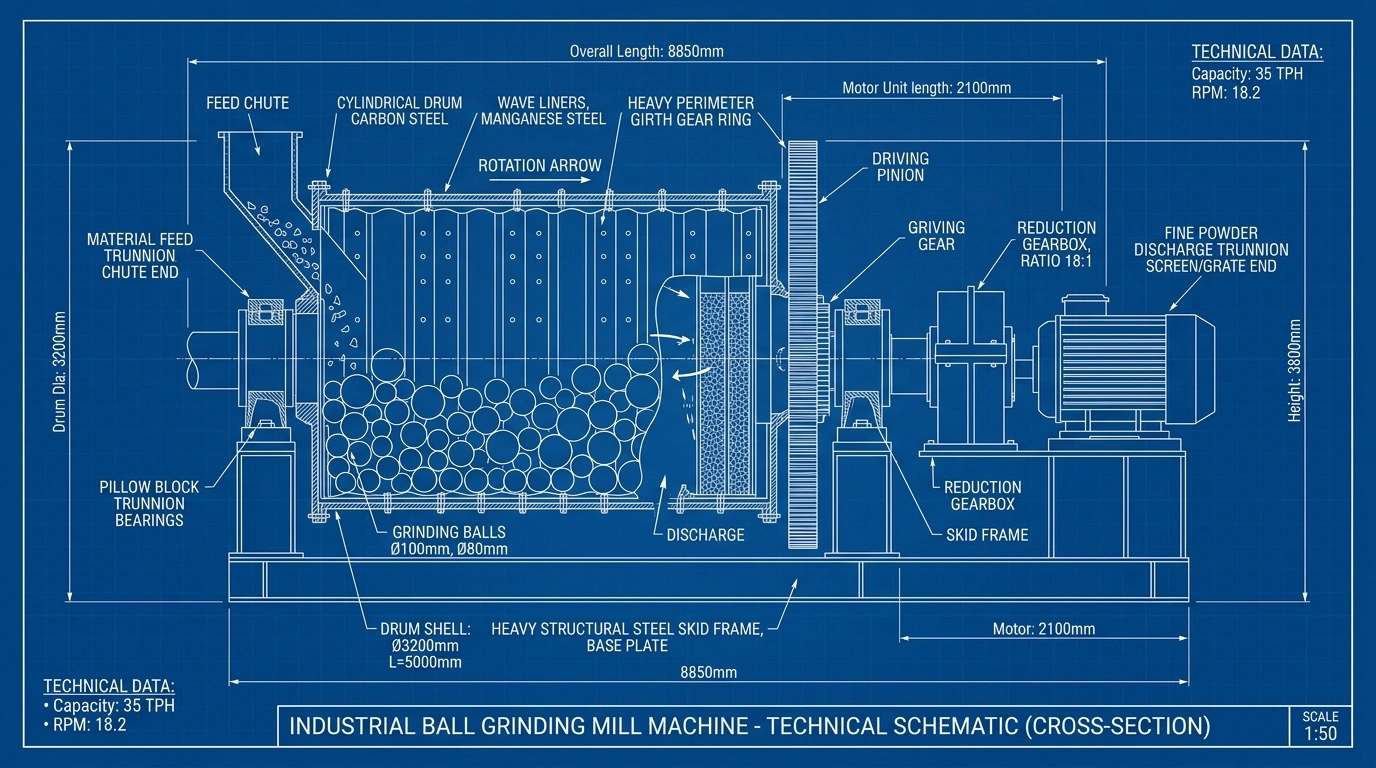

The engineering cutaway drawing below illustrates the internal mechanical structure and operational geometry of our heavy-duty ball milling machine diagram, explaining how the cascading charge of high-density steel spheres fractures and pulverizes the mineral charge:

Operational Principle: Impact & Attrition Grinding Dynamics

1. Continuous Material Infeed: Coarse mineral feed, crushed iron slag, or clinker is fed continuously into the feed trunnion chute end at a regulated flow rate without clogging.
2. Centrifugal Cascading Charge: As the heavy drum shell rotates at critical speed, the internal wave-profile manganese steel liners lift the grinding media (steel balls ranging from 50 mm to 100 mm) to near the top of the barrel.
3. Severe Impact Catapult: The lifted balls cascade and plummet downwards onto the bed of material, crushing coarse particles through high-energy compressive impact.
4. Frictional Attrition & Shearing: As the spheres roll over each other and against the drum liners, shear forces pulverize the intermediate grains into fine micro-particles down to 200 mesh (75 microns).
5. Grate Screen Discharge: The ground material progresses along the length of the cylinder toward the discharge trunnion, exiting through a heavy discharge screen while the grinding media remains secured inside the drum.

Heavy-Duty Mechanical Fabrication & Workshop Assembly

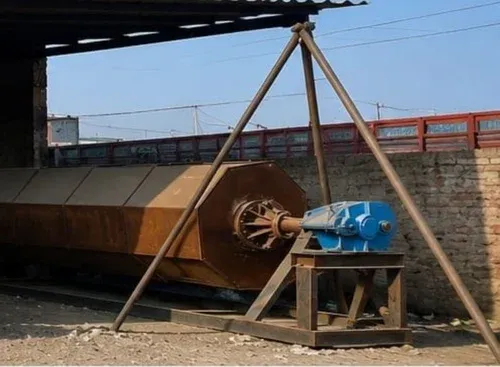

Every ball milling machine fabricated at our Mandi Gobindgarh workshop undergoes stringent static balancing, alignment verification, and full-load motor testing to ensure vibration-free continuous operation on industrial sites.

Rigid Skid Base Frame

Heavy-duty structural channel frame designed for leveling-only installation, eliminating the requirement for complex subterranean foundations.

Precision Gearbox Transmission

High-torque reduction gearbox directly coupled to the trunnion shaft for smooth startup torque, high mechanical efficiency, and low acoustic noise.

Applications Across Industrial Processing Sectors

The versatility of this ball grinding machine makes it suitable for both wet and dry pulverizing across multiple industries:

• Steel Slag & Metal Recovery: Pulverizing pre-crushed steel slag to liberate encapsulated micro-iron particles for subsequent high-intensity magnetic separation.
• Cement Plants & Clinker Grinding: Fine milling of Portland cement clinker, gypsum, and blast furnace slag (GGBS) to specified Blaine fineness.
• Mining & Mineral Beneficiation: Ultra-fine pulverizing of iron ore, copper ore, quartz, bauxite, feldspar, and limestone slurry.
• Coal & Thermal Power: Pulverizing coal to micronized combustible fuel grade for boilers and industrial furnaces.
• Ceramic & Chemical Industries: Grinding clay, glaze, silica, pigments, and refractory compounds to exacting micron specifications.
