Zig Zag Separator Machine (Air Classifier & Seed Separator 200 LPH)

Description

The Industrial Zig Zag Air Separator Machine (commonly searched as a Zig Zag Separator, Zig Zag Air Classifier, Aerodynamic Zig Zag Divider, or Zig Zag Seed Separator) is a specialized density-based separation system manufactured by N.S. Engineering Works. Engineered in Mandi Gobindgarh, Punjab, this equipment separates mixed bulk solids into purified light and heavy fractions based on aerodynamic drag, particle terminal velocity, and specific gravity differences. It delivers a completely dry, energy-efficient classification process for plastic recycling lines, agricultural seed cleaning mills, e-waste copper granulators, and wood biomass processing facilities.

Unlike conventional water-submerged float-sink tanks or vibrating screens that generate heavy slurry and demand high-temperature drying ovens, the zig-zag separator operates with pure upward air classification. By guiding falling bulk materials through an alternating angular zig-zag column, the system generates controlled multi-stage turbulence and repeated collisions. This achieves exceptional separation purity of up to 99.2%, making it the preferred zig zag separator design across modern recycling and grain processing plants.

Working Principle of the Zig Zag Divider and Air Classification Column

The aerodynamic separation inside a zig zag divider column relies on counter-current fluidization, balancing the gravitational downward velocity of heavier solids against the upward aerodynamic lift of the suction airstream:

• Uniform Material Infeed: Bulk mixed feed (such as chopped PET bottle flakes, mixed grain seeds, or shredded copper cables) enters via the top receiving chute through a calibrated rotary or vibratory feeder.
• Multi-Stage Cascading Fluidization: As the material falls by gravity, it repeatedly impacts 120-degree angular zig-zag channel walls. This bouncing cascade dislodges trapped dust, opens compacted flakes, and exposes every particle to the cross-flowing airstream multiple times.
• Upward Suction Air Separation: A high-pressure centrifugal ID blower fan pulls air upward through the bottom opening. Lightweight fractions with lower terminal velocity (such as BOPP label film, husk, chaff, dust, and wire insulation fluff) are aerodynamically lifted into the suction duct.
• Gravitational Heavy Discharge: Dense materials (such as clean rigid PET/PP flakes, whole grains, and heavy metal copper pellets) have a terminal velocity higher than the upward air speed, allowing them to fall freely through the bottom discharge chute into collection bins.
• Centrifugal Cyclone Dust Collection: The light fractions entrained in the airstream enter a tangential cyclone separator where cyclonic centrifugal forces precipitate the solids into a discharge bag or rotary airlock, venting clean air to the atmosphere.

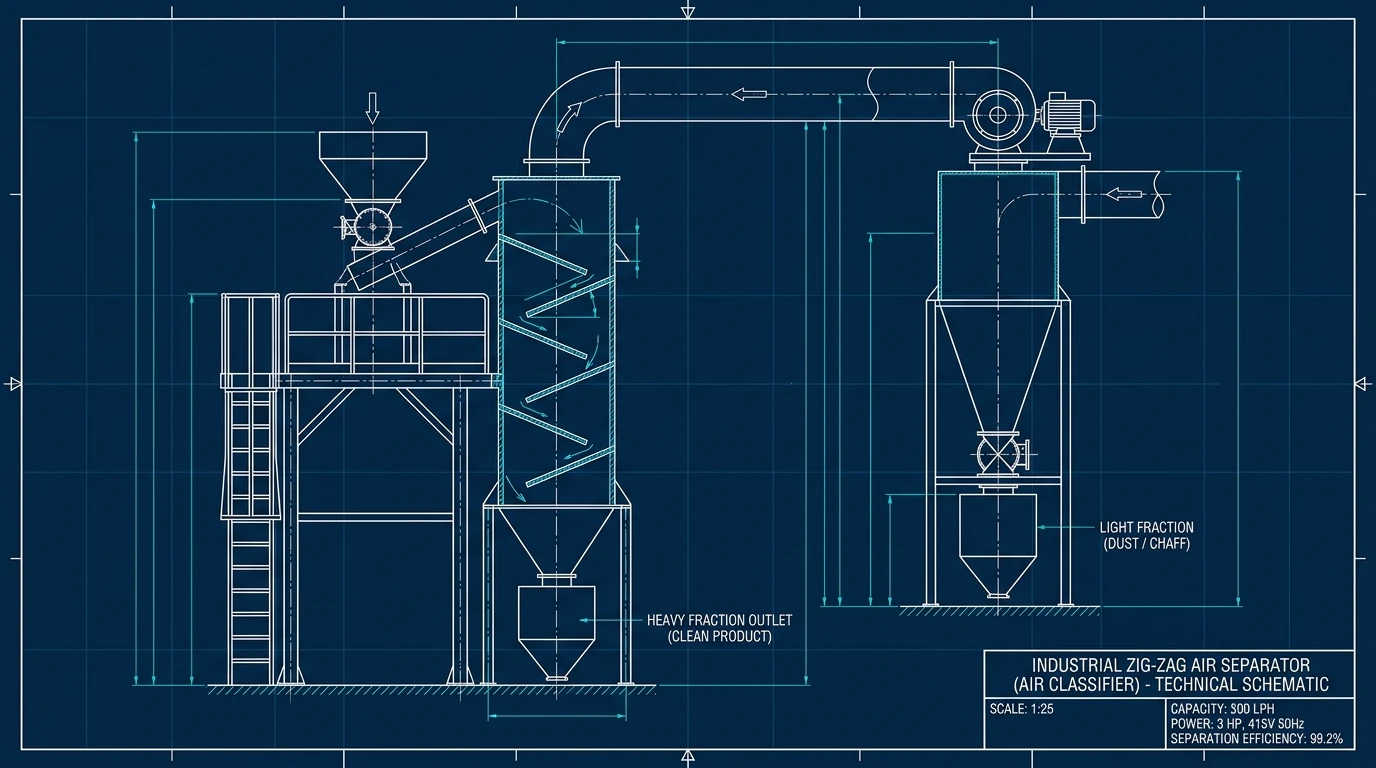

Zig Zag Separator Design, Engineering Plans & Technical Schematic

Precision engineering is paramount in zig zag air classifier design. The channel depth, zig-zag angle, baffle spacing, and airflow static pressure are meticulously calculated to prevent material bridging while maintaining uniform velocity across the cross-section.

Comprehensive Technical Specifications (Model: NSEW-ZZS-200)

Key Industrial Applications Across Recycling and Agriculture

The versatility of our zig-zag air classifier makes it a premier density separation solution across multiple industries:

• Plastic Flake Recycling & Regrind Cleaning: Separates lightweight BOPP wrap, polyethylene labels, and paper fibers from rigid PET bottle flakes, HDPE regrind, and PP granules. Clean flakes command top market rates and prevent extrusion filter clogging.
• Agricultural Seed Cleaning (Zig Zag Seed Separator for Sale): Used by seed breeders, grain mills, and pulse processors to extract hollow seeds, husk, straw, dried chaff, and insect-damaged light grains from wheat, barley, soybeans, pulses, and vegetable seeds.
• E-Waste & Copper Wire Recovery (Zig Zag Divider Line): Integrated into cable wire recycling plants to split shredded PVC plastic insulation fluff from dense chopped copper and aluminum wire granules.
• Wood Processing & Biomass Pelleting: Strips lightweight bark dust, sawdust fines, and microscopic fibers from wood chips and biomass pellets for cleaner combustion and uniform pellet quality.
• Tire Rubber Mulch & Crumb Processing: Removes synthetic textile fibers and cords from shredded tire rubber crumb in recycling facilities.

Frequently Asked Questions (FAQs)

{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [
{
“@type”: “Question”,
“name”: “How does a Zig Zag Air Separator work?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “The zig-zag air classifier separates mixed materials based on aerodynamic density. As particles cascade down the multi-stage zigzag column, an upward adjustable airflow lifts lighter particles while heavier particles fall to the bottom.”
}
},
{
“@type”: “Question”,
“name”: “What is the processing capacity of the 200 LPH Zig Zag Separator?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “The machine processes up to 200 Liters Per Hour (LPH) of mixed granular or flake material.”
}
},
{
“@type”: “Question”,
“name”: “What industries use this zig-zag density classifier?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Widely used in plastic recycling (separating film from rigid flakes), e-waste recycling (copper/aluminum from plastics), agriculture (seed and grain cleaning), and wood fiber processing.”
}
}
]
}
